Wire Mesh
Leading Manufacturers, Exporters and Wholesaler of Copper Mesh Tape, Copper Wire Mesh, Knitted Wire Mesh and Stainless Steel Wire Mesh from Ramanagara.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Material | Annealed Tinned Copper (ATC) |
| Width Range | 12.5 mm to 20 mm |
| Mesh Structure | Open-weave flat braided format |
| Finish | Tinned for corrosion resistance |
| Packaging Type | Roll form (custom lengths available) |

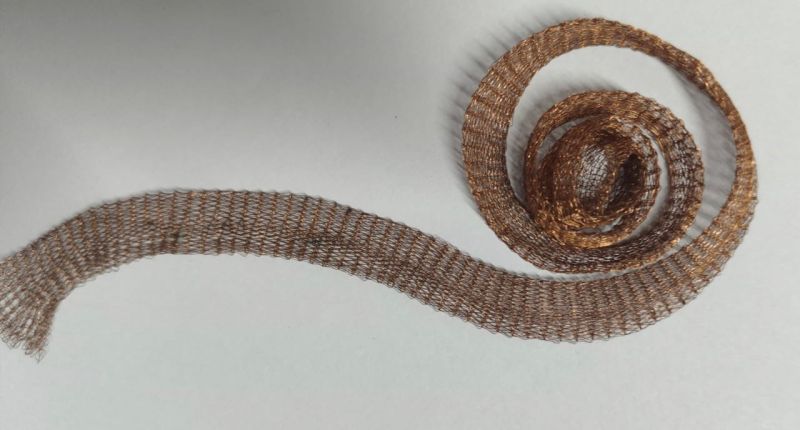

Mesh Tape is a flexible, conductive tape made from Annealed Tinned Copper (ATC) wires woven into an open mesh structure. It is primarily used for EMI/RFI shielding, electrical grounding, and cable wrapping in various electrical and electronic assemblies. The tape offers excellent surface coverage and allows for easy installation, bending, and layering.
Key Features:
Good electrical conductivity
Flexible and lightweight
Corrosion-resistant tinned surface
Easy to apply over cables, splices, and connectors
Compatible with soldering and crimping
Applications:
EMI/RFI shielding in cable assemblies
Grounding in control panels and enclosures
Cable shielding in automotive and aerospace systems
Reinforcement and strain relief for wire harnesses
| Business Type | Manufacturer, Exporter, Supplier |
| Wire Diameter | 0.10 Mm – 0.50 Mm,0.12 - 0.5mm |
| Material | 99% Pure Copper |
| Color | Brown |
| Application | Electrical Shielding,EMI/RFI Protection,Filtration,Insect Screen,Decoration |
| Mesh Size | 2*4mm, 4*5mm, 12*6mm |
| Type | Copper Wire Mesh |
| Country of Origin | India |
| Features | High Conductivity, Non-Magnetic, Corrosion Resistant, Heat Resistant |
| Width | 100mm, 150mm, 300mm, 400mm, 500mm, 520mm, 560mm |
| Mesh Opening Sizes | Customizable (e.g., 4×4 mm, 6×6 mm, 12×12 mm etc.) |
| Width Options | 100 mm to 1000 mm |
| Roll Length | 10 to 100 meters |
| Pattern | Woven |
Copper Wire Mesh is a woven mesh made from pure copper wire, known for its high electrical conductivity, flexibility, and corrosion resistance. This mesh is widely used in electrical shielding, filtration, insect screening, and decorative purposes. Its reddish-gold appearance also makes it suitable for architectural applications.
Key Benefits:
Excellent electrical and thermal conductivity
javascript:void(0);
Suitable for both technical and decorative use
Long-lasting even in humid and chemical environments
Easy to cut, shape, and install
| Business Type | Manufacturer, Exporter, Supplier |
| Features | High Elasticity, Excellent Filtration Efficiency, Resistant To Corrosion And Heat, Reusable And Dura |
| Wire Diameter | 0.10 Mm – 0.50 Mm |
| Material | Stainless Steel, Copper,Brass,Inconel,Monel,Galvanized Steel |
| Application | Vibration Dampening,EMI/RFI Shielding,Exhaust Systems,Air/Gas Filtration,Seals & Gaskets |
| Technique | Welded Mesh |
| Weave Style | Welded |
| Type | Knitted Wire Mesh |
| Country of Origin | India |
| Mesh Type | Knitted (Single or Double Loop) |
| Width Range | 25 mm to 600 mm |
| Roll Length | 5 to 50 meters (custom lengths available) |
| Shape Availability | Roll, Pad, Ring, Cylinder, Strip (as per drawing) |

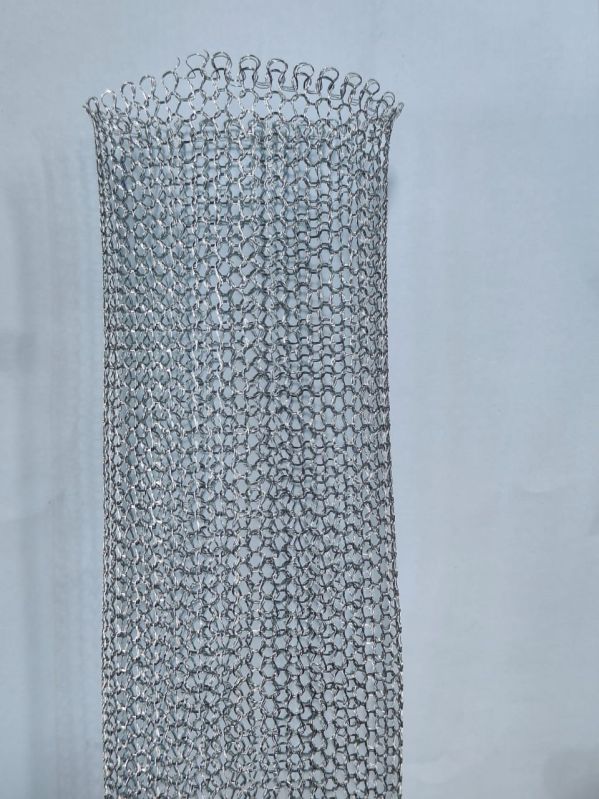

Knitted Wire Mesh is a flexible and strong mesh structure made by interlocking metal wires in a looped pattern, similar to fabric knitting. It is used in applications requiring vibration damping, EMI/RFI shielding, filtration, and gas-liquid separation. The mesh can be made from stainless steel, copper, brass, Inconel, or other alloys as per requirement.
Key Benefits:
Flexible and can be compressed or expanded
Ideal for high-temperature and corrosive environments
Customizable in size, material, and form
Lightweight yet strong for industrial-grade applications
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Stainless Steel Wire Mesh |
| Wire Diameter | 0.10 Mm – 1.00 Mm |
| Weave Style | Knitted |
| Grade | S.S.201,202,301,302,304,316,316L |
| Application | Construction, Filtration,Fencing,Industrial Sieving,Window Screens,Machinery Safety |
| Color | Silver |
| Material | Stainless Steel (General Grades Like 304 / 316 Available Upon Request) |
| Feature | Service Temperature Up To 2000°F, Corrosive Resistant, Extremely Durable, Available And Eco,Corrosion-resistant,Heat-tolerant,Rigid And Strong,Long Life Span,Easy To Fabricate |
| Roll Length | 10- 200 Meter |
| Mesh Opening | Square, Rectangular |
| Width | Up to 1500 mm |
| Mesh Size Range | 2 mesh to 250 mesh |
| Surface Finish | Smooth, Cleaned, Oil-free |

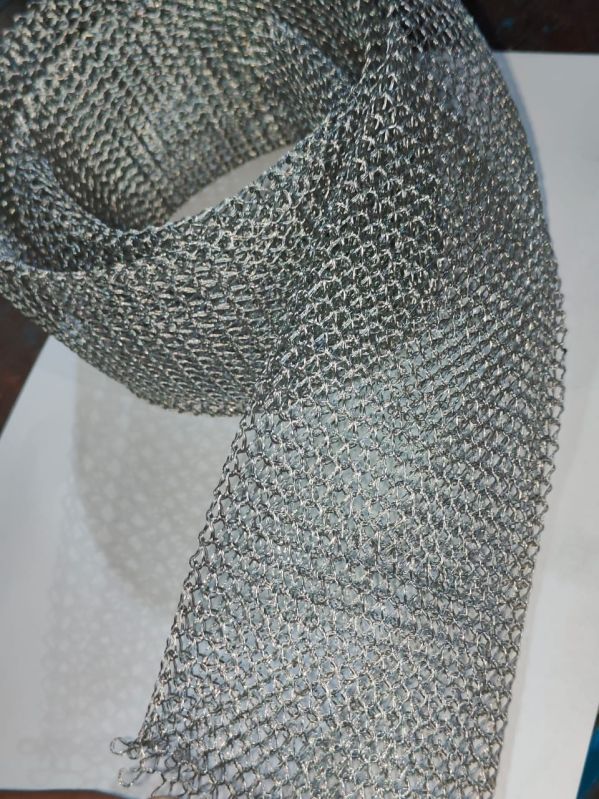

Stainless Steel Wire Mesh is a strong, corrosion-resistant, and durable woven mesh made from stainless steel wires. It is commonly used in filtration, screening, separation, safety, reinforcement, and architectural applications. Its ability to resist moisture, chemicals, and high temperatures makes it suitable for both indoor and outdoor industrial environments.
Key Benefits:
Withstands moisture, acids, alkalis, and heat
Rigid structure suitable for industrial use
Easy to cut, weld, and shape for specific needs
Reusable and eco-friendly material option
