Ramanagara, Karnataka
- GST NO. : 29AAACP8228L1ZY
50 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Datasheet |  View |
| Thickness | 1 Mm To 10 Mm |
| Material | Bare Copper / Tinned Copper |
| Click to view more | |
Product Details
Packaging Type
Roll, Coils,Cut Lengths,Or Custom Packs
Country of Origin
India
Wire Diameter
0.51 Mm To 3 Mm
Stranding
Fine copper wires (typically 0.07–0.20 mm dia each)
Width Range
5 mm to 100 mm (custom on request)
Current Capacity
Varies as per cross-sectional area
Finish Options
Bare / Electro Tinned
Resistance
Low electrical resistance
Operating Temperature
-20°c to +120°c (approx.)

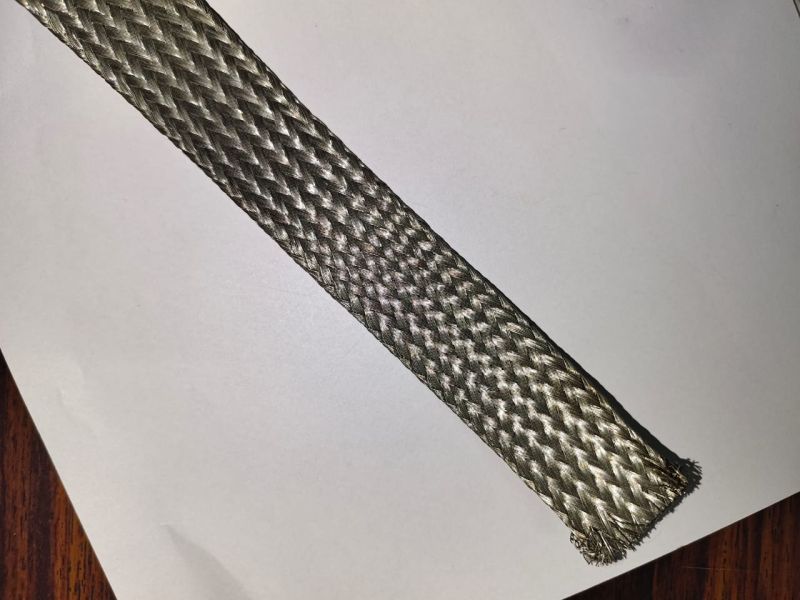

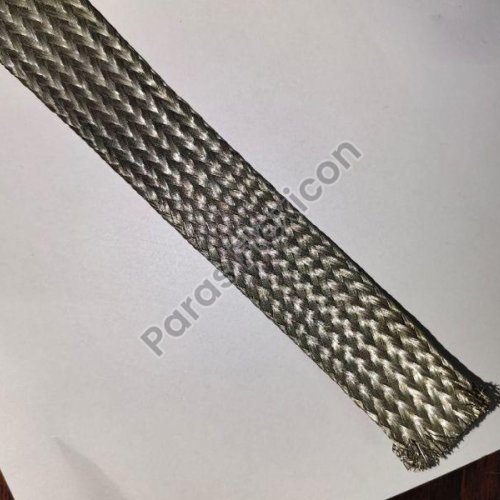

Flat Copper Braid is a flexible, tinned or bare copper conductor made by weaving multiple fine copper wires into a flat, ribbon-like structure. It is widely used for electrical grounding, bonding, shielding, and as a flexible connector in electrical systems. Due to its flat profile, it offers excellent current-carrying capacity with space efficiency.
Key Features:
High flexibility and vibration resistance
Excellent conductivity for electrical applications
Easy to solder and terminate
Corrosion-resistant in tinned variant
Ideal for compact electrical assemblies
Â
Applications:
Electrical grounding and bonding
Busbar connections
Shielding in control panels and switchgear
Battery connections and inverter systems
Flexible jumpers in machinery and railways
Â
Â
Â
Additional Information
Sl NO |
Paras Part Number |
Nominal Flat Width in inches |
Nominal Flat Width in mm |
Nominal Thickness in inches |
Nominal Thickness in mm |
AWG of Individual Strands |
No. of Carriers |
No. of Wires per Carrier |
Total No. of Wires |
Ampere |
Approx. Shipping Weight Kg/Km |
| 1 | 6010230481909 | 0.906 | 23 | 0.061 | 1.55 | 36 | 48 | 19 | 912 | 89 | 154.15 |
| 2 | 601024240309 | 0.125 | 3.18 | 0.02 | 0.508 | 36 | 24 | 3 | 72 | 16 | 12.17 |
| 2 | 601026240409 | 0.156 | 3.96 | 0.031 | 0.7874 | 36 | 24 | 4 | 96 | 19 | 16.23 |
| 3 | 601028240509 | 0.187 | 4.75 | 0.02 | 0.508 | 36 | 24 | 5 | 120 | 25 | 20.28 |
| 4 | 601029240709 | 0.25 | 6.35 | 0.03 | 0.762 | 36 | 24 | 7 | 168 | 32 | 28.4 |
| 5 | 601029241009 | 0.25 | 6.35 | 0.046 | 1.1684 | 36 | 24 | 10 | 240 | 40 | 40.57 |
| 6 | 6010211241309 | 0.281 | 7.14 | 0.046 | 1.1684 | 36 | 24 | 13 | 312 | 46 | 52.74 |
| 7 | 6010213480609 | 0.375 | 9.53 | 0.03 | 0.762 | 36 | 48 | 6 | 288 | 40 | 48.68 |
| 8 | 6010213240509 | 0.375 | 9.53 | 0.045 | 1.143 | 30 | 24 | 5 | 120 | 60 | 20.28 |
| 9 | 6010222480809 | 0.625 | 15.88 | 0.03 | 0.762 | 36 | 48 | 8 | 384 | 53 | 64.91 |
| 10 | 6010222481109 | 0.625 | 15.88 | 0.046 | 1.1684 | 36 | 48 | 11 | 528 | 62 | 89.25 |
| 11 | 6010219480809 | 0.5 | 12.7 | 0.03 | 0.762 | 36 | 48 | 8 | 384 | 53 | 64.91 |
| 12 | 60102129481809 | 0.75 | 19.05 | 0.04 | 1.016 | 36 | 48 | 18 | 864 | 88 | 146.04 |
| 13 | 6010232481809 | 1 | 25.4 | 0.045 | 1.143 | 36 | 48 | 18 | 864 | 85 | 146.04 |
| 14 | 6010227481909 | 0.812 | 20.62 | 0.045 | 1.143 | 36 | 48 | 19 | 912 | 93 | 154.15 |
| 15 | 6010229482209 | 0.875 | 22.23 | 0.05 | 1.27 | 36 | 48 | 22 | 1056 | 105 | 178.49 |
| 16 | 60102129246709 | 0.75 | 19.05 | 0.04 | 1.016 | 36 | 24 | 67 | 1608 | 125 | 271.8 |
| 17 | 6010251488409 | 1.625 | 41.28 | 0.08 | 2.032 | 36 | 48 | 84 | 4032 | 230 | 681.52 |
| 18 | 60102128241017 | 0.5 | 12.7 | 0.093 | 2.3622 | 30 | 24 | 10 | 240 | 90 | 157.2 |
| 19 | 6010222241517 | 0.625 | 15.88 | 0.093 | 2.3622 | 30 | 24 | 15 | 360 | 120 | 235.79 |
| 20 | 60102129242017 | 0.75 | 19.05 | 0.11 | 2.794 | 30 | 24 | 20 | 480 | 145 | 314.39 |
| 21 | 6010229242417 | 0.875 | 22.23 | 0.12 | 3.048 | 30 | 24 | 24 | 576 | 165 | 377.27 |
| 22 | 6010231242617 | 0.937 | 23.8 | 0.13 | 3.302 | 30 | 24 | 26 | 624 | 170 | 408.71 |
| 23 | 6010231242617 | 0.937 | 23.8 | 0.13 | 3.302 | 30 | 24 | 27 | 648 | 175 | 424.43 |
| 24 | 6010231242717 | 1 | 25.4 | 0.14 | 3.556 | 30 | 24 | 32 | 768 | 195 | 503.03 |
| 25 | 60102129480517 | 0.75 | 19.05 | 0.05 | 1.27 | 30 | 48 | 5 | 240 | 93 | 157.2 |
| 26 | 6010243480717 | 1.375 | 34.93 | 0.05 | 1.27 | 30 | 48 | 7 | 336 | 100 | 220.07 |
| 27 | 6010232480817 | 1 | 25.4 | 0.07 | 1.778 | 30 | 48 | 8 | 384 | 120 | 251.51 |
| 28 | 6010241481017 | 1.25 | 31.75 | 0.08 | 2.032 | 30 | 48 | 10 | 480 | 145 | 314.39 |
| 29 | 6010247481117 | 1.5 | 38.1 | 0.06 | 1.524 | 30 | 48 | 11 | 528 | 145 | 345.83 |
| 30 | 6010229481217 | 0.875 | 22.23 | 0.09 | 2.286 | 30 | 48 | 12 | 576 | 150 | 377.27 |
| 31 | 6010244481417 | 1.375 | 34.93 | 0.09 | 2.286 | 30 | 48 | 14 | 672 | 165 | 440.15 |
| 32 | 6010247481817 | 1.5 | 38.1 | 0.1 | 2.54 | 30 | 48 | 16 | 768 | 180 | 503.03 |
| 33 | 6010251481817 | 1.625 | 41.28 | 0.11 | 2.794 | 30 | 48 | 18 | 864 | 200 | 565.91 |
| 34 | 6010244482217 | 1.375 | 34.93 | 0.12 | 3.048 | 30 | 48 | 22 | 1056 | 235 | 691.66 |
| 35 | 6010254482617 | 1.75 | 44.45 | 0.13 | 3.302 | 30 | 48 | 26 | 1248 | 250 | 817.42 |
| 36 | 6010259482817 | 2 | 50.8 | 0.13 | 3.302 | 30 | 48 | 28 | 1344 | 255 | 880.3 |
| 37 | 6010259483217 | 2 | 50.8 | 0.14 | 3.556 | 30 | 48 | 32 | 1536 | 290 | 1006.06 |
| 38 | 6010259483517 | 2 | 50.8 | 0.15 | 3.81 | 30 | 48 | 35 | 1680 | 320 | 1100.37 |
| 39 | 6010269484417 | 2.375 | 60.33 | 0.175 | 4.445 | 30 | 48 | 44 | 2112 | 370 | 1383.33 |
| 40 | 6010286484717 | 3 | 76.2 | 0.19 | 4.826 | 30 | 48 | 47 | 2256 | 390 | 1477.64 |
| 41 | 601027248525217 | 2.5 | 63.5 | 0.19 | 4.826 | 30 | 48 | 52 | 2496 | 410 | 1634.84 |
